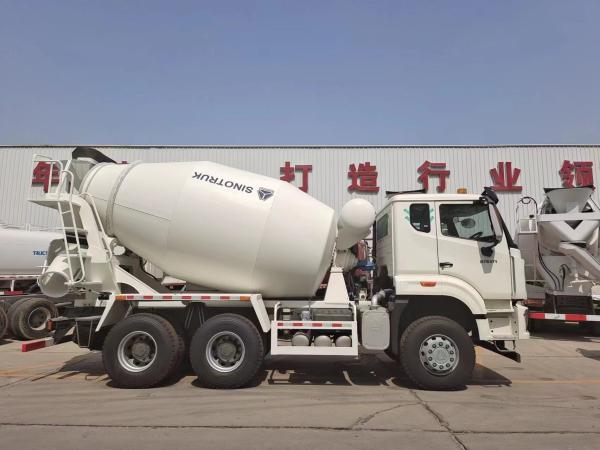

SINOTRUK HOWO Concrete Mixer Truck 6×4 RHD
SINOTRUK HOWO 6x4 Concrete Mixer Truck 371HP RHD
SINOTRUK HOWO 6x4 LHD Concrete Mixer Truck 371HP 10CBM
Description:
Sinotruk HOWO E7 10CBM 371HP 6x4 RHD ZZ1257V324JB1R Concrete Mixer Truck
HOWO E7 concrete mixer truck adopts HOWO E7 chassis, equipped with A7-W single sleeper cab, dedicated for export, equipped with Euro 2 common rail or electronic ramp, self-developed Euro IV heavy truck engine, standard ZF imports from Germany. HOWO 10 and 12 gearboxes, HF 9-ton front axle, HC16 or AC16 rear axle, large load capacity to meet customer needs.
The mixing tank adopts high wear-resistant steel plate and cage structure to ensure the concentricity and roundness of the flange, each cylinder part and rolling body, and ensure the normal operation of the vehicle. The oil tank body adopts double helical blades with moderate density and moderate taper. The front croquet has a symmetrical stirring plate, with guide vanes and vanes installed in the grooves for faster utilization of the material.
Specification:
| SINOTRUK HOWO 6x4 RHD Concrete Mixer Truck 10CBM |
| Model | ZZ1257V324JB1R |
| Drive Type | 6×4 |
| Engine | | WD615.47 , 371HP( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 9.726L |
|
| Cabin | H77L lengthened cab(with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1×HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8098 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 3825+1350(mm) |
| Overall dimension | 8604×2496×3950(mm) |
| Tank body Capacity | 10CBM |
| The curb weight | 12800(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 102km/h |
| Color | White, red, green, golden and so on. |
Applications:
t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business.
Competitive Advantage:
1) The product has advanced technology, complete functions, excellent performance, reliable quality and convenient operation.
2) The body structure is optimized, the special mold is made, the appearance is beautiful, the concrete is evenly mixed, the material is evenly discharged, and the residue rate is low.
3) Imported hydraulic pumps, hydraulic motors, reducers.
4) High-strength steel plate is used for long service life.
5) The structure of the whole machine is optimized, the center of gravity is low, and the operating efficiency is high.
6) The product range is wide, and the tank capacity is 6 to 18 cubic meters.
7) Choose from a variety of auxiliary devices.
8) Match all concrete mixer truck chassis.
9) Based on strong technical support and first-class technology, the truck quality is more reliable
10) Competitive price, cost-effective
11) Fast and efficient spare parts supply brings you more convenience
12) Fast delivery time, we can arrange production according to your needs accurately and quickly
