LHD 6×4 10wheels High Horsepower 340HP HOWO Concrete Mixer Truck
Sinotruk Howo Concrete Mixer Truck 10-20CBM 6 x 4 Euro 2 340Hp Construction
Description:
HOWO Mixer Truck,suitable for urban construction,highway,railway,and other departments. Mixer truck is one of indispensable important equipment of the mechanize construction. The body material use special wear-resistant alloy materials.Concrete mixing and transportation with good mixing uniformity. Loading and discharge is
speedly,discharge residual rate is low, hydraulics system reliable,easy to operation and look like beautiful.
Specification:
| Sinotruk Howo Concrete Mixer Truck 10-20CBM 6 x 4 Euro 2 340Hp Construction |
| Model | ZZ1257N3847B1 |
| Drive Type | 6×4 |
| Engine | | WP10.340E22,340HP( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 9.726L | |

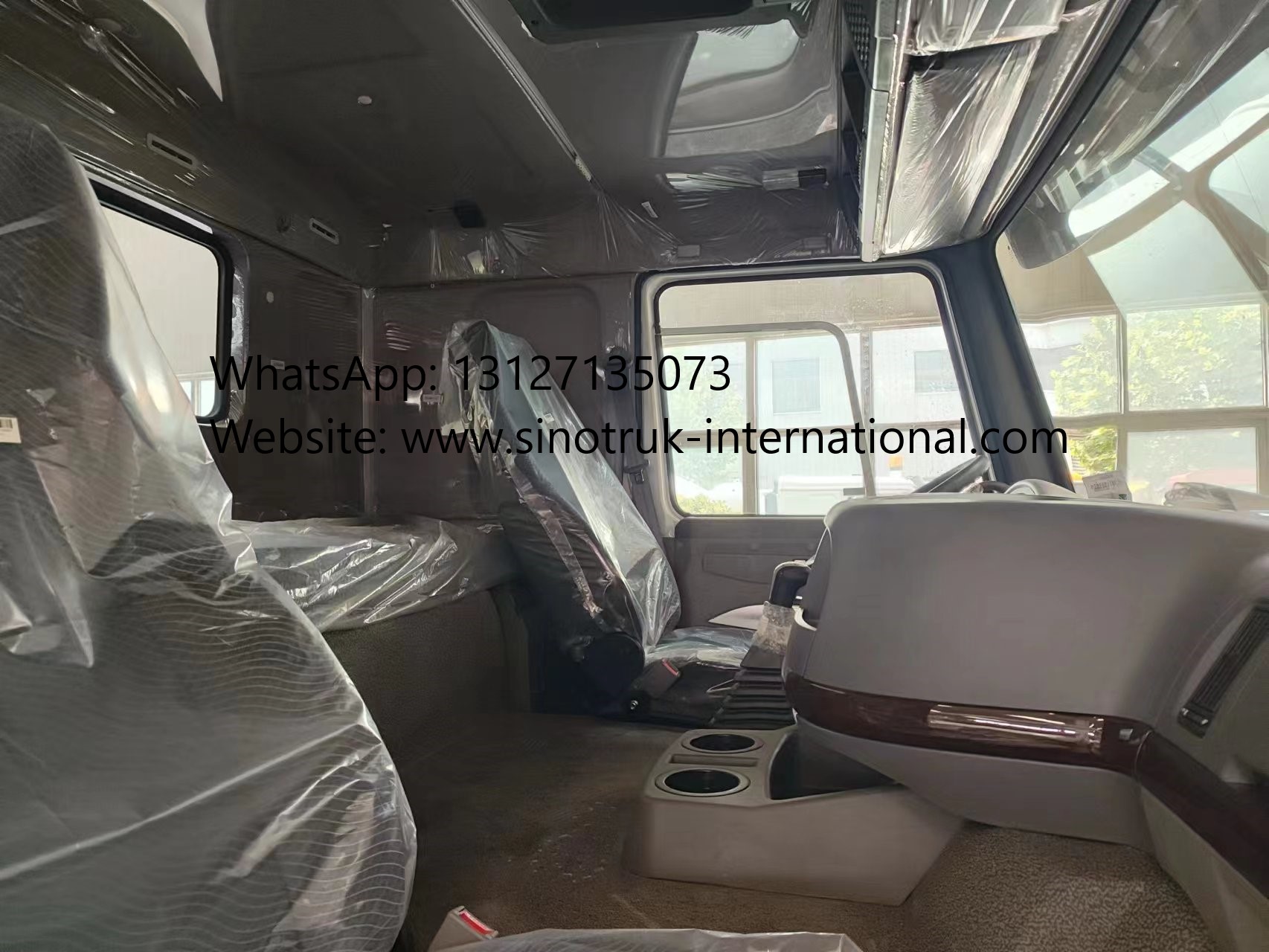

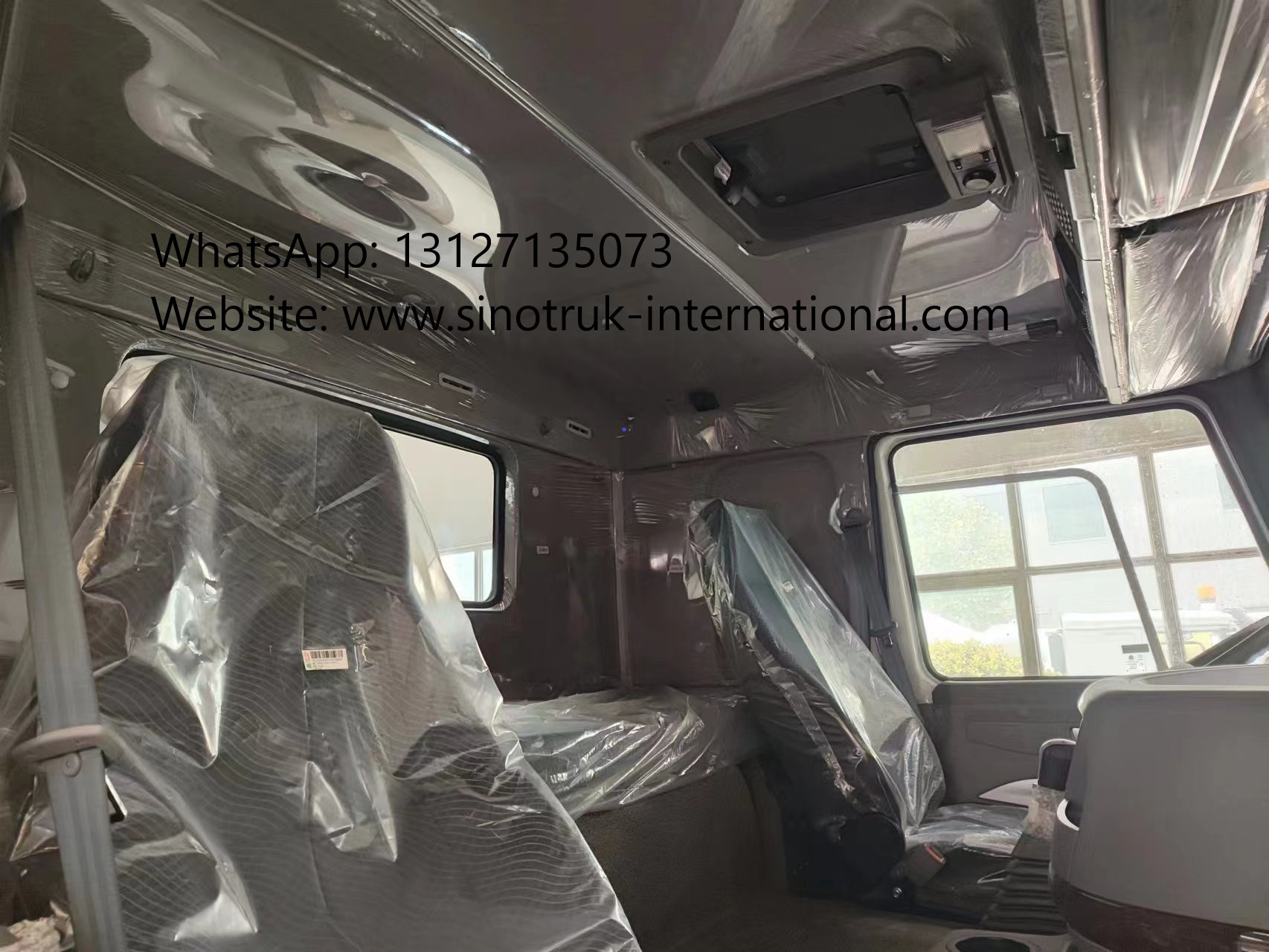

| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1×VGD95 ( 9.5 Tons) |
| Driving Axle | 2×HC16, 2×16Tons |
| Steering | BOSCH or China brand hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 3800+1350(mm) |
| Overall dimension | 8075×2600×3000(mm) |
| Tank body Capacity | 10-20CBM |
| The curb weight | 12650(Kg) |
| Gross weight | 31000 kg |
| Max. speed | 102km/h |
| Color | White, red, green, golden and so on. |
Applications:
t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other
infrastructure construction business.
Competitive Advantage:
1) The leading product technology, complete function, excellent performance, reliable quality, easy to
operate.
2) Optimization of body structure, special mold production, beautiful appearance, concrete mixing,
discharge uniformity, low rate of residual.
3) Imported hydraulic pump, hydraulic motor and speed reducer.
4) Blade continuous track line design, mixing evenly, fast discharge, low residual rate, the key parts of the design of pressure hole layout, so that the tank and blade life extension
5) Optimization of the whole structure, low center of gravity, high running efficiency.
6) Product range is wide, the tank capacity of 6 to 18 cubic meters.
7) Super bearing, strong and durable: the use of advanced international technology integrated rear support, the overall fatigue life is increased by 1 times, reinforced cable-stayed beam to ensure sufficient strength and stiffness of the vehicle rear suspension
8) Match all concrete mixer truck chassis.
9) based on strong technical support and top level technology make the trucks with high
quality and more reliable
10) competive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and
quickly
13) professional import and export dealing precedure, make customs clearance more high efficiency
